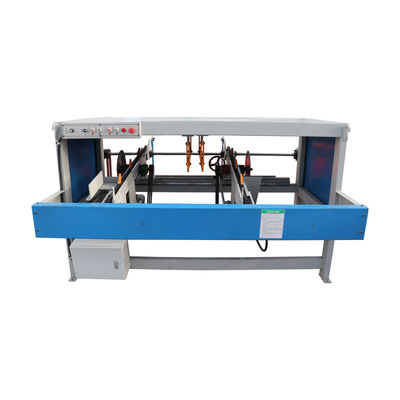

Double End Trim Saw Machine for Woodworking With Motor and Blade Components Horizontal Cutting

Podstawowe informacje
Miejsce pochodzenia: Prowincja Shandong, Chiny
Nazwa handlowa: SH
Orzecznictwo: ISO9001
Numer modelu: QT2000, QT3000, QT4000
Minimalne zamówienie: 1 KOMPLET piły do ​​drewna
Cena: USD2800-6900/SET
Szczegóły pakowania: drewniana paleta lub żelazna rama do pakowania
Czas dostawy: w ciągu 10 dni
Zasady płatności: T/T, Western Union
Możliwość Supply: 100 zestawów/zestawów miesięcznie
Szczegóły informacji
Nazwa: Piła do przycinania Maks. wysokość piły: 100 mm
<i>Max.</i> <b>Maks.</b> <i>sawing length</i> <b>długość cięcia</b>: 4000 mm lub zgodnie z potrzebami klienta Okrągła średnica ostrza: 300 mm
Główna moc silnika: 3kw x 2, 3kw x 3, 3kw x 4 zestawy lub według potrzeb klienta Średnica wału głównego: 30 mm
KARMIENIE: Automatyczny Długość cięcia: regulowany
Gwarancja: 1 rok Usługa po sprzedaży: Wsparcie techniczne wideo, części zamienne

opis produktu

Solid Wood Cut-Off Saw: Make Precise Cuts, Minimize Waste, and Boost Productivity

For woodworkers and builders, achieving clean, precise cuts in solid wood is essential for professional results and efficient material use. The solid wood cut-off saw is specifically engineered to deliver this core benefit, transforming how you handle lumber and boards by combining exceptional accuracy with robust power to significantly reduce material waste and save valuable time on every project.

  • cutting both ends of the panels in same length
  • cutting length is adjustable
  • with auto feeding
  • chain drive

Technical data:



Multi blades cutting off circular saw - Trim Saw
Model QT2000 QT3000 QT4000
Cutting height 100mm 100mm 100mm
Cutting width 2000mm 3000mm 4000mm
Circular blade diameter 300mm 300mm 300mm
Main motor power 3kw x2 3kw x3 3kw x4
weight 620kgs 820kgs 1020kgs
Overall size 3200x1800x1150mm 2200x1800x1150mm 4800x1800x1150mm

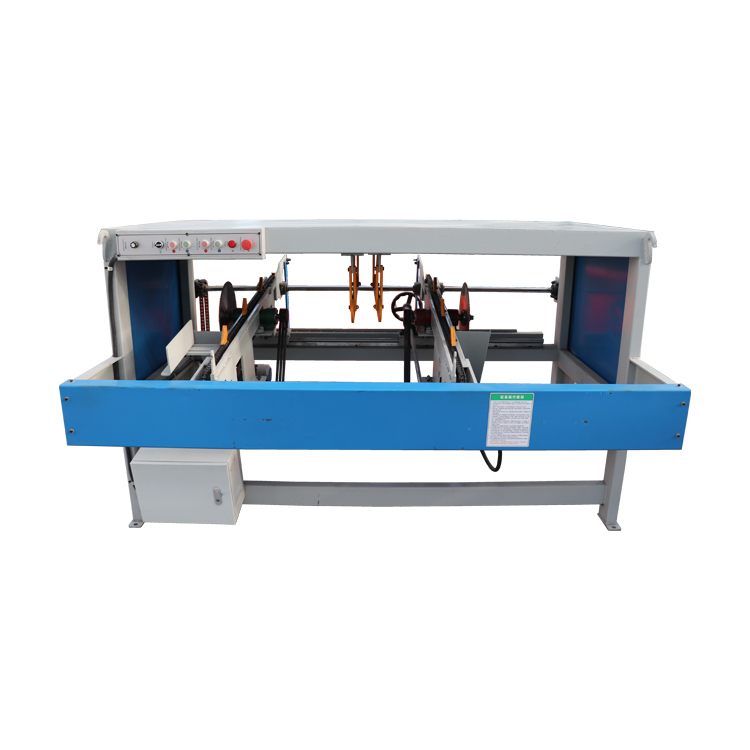

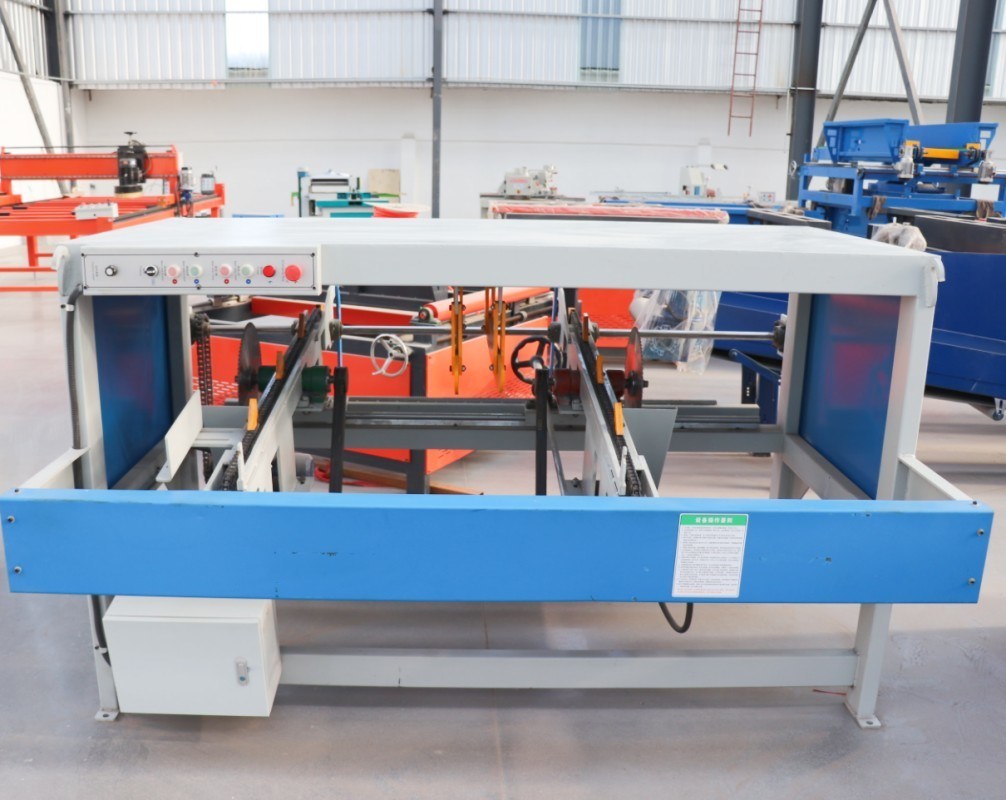

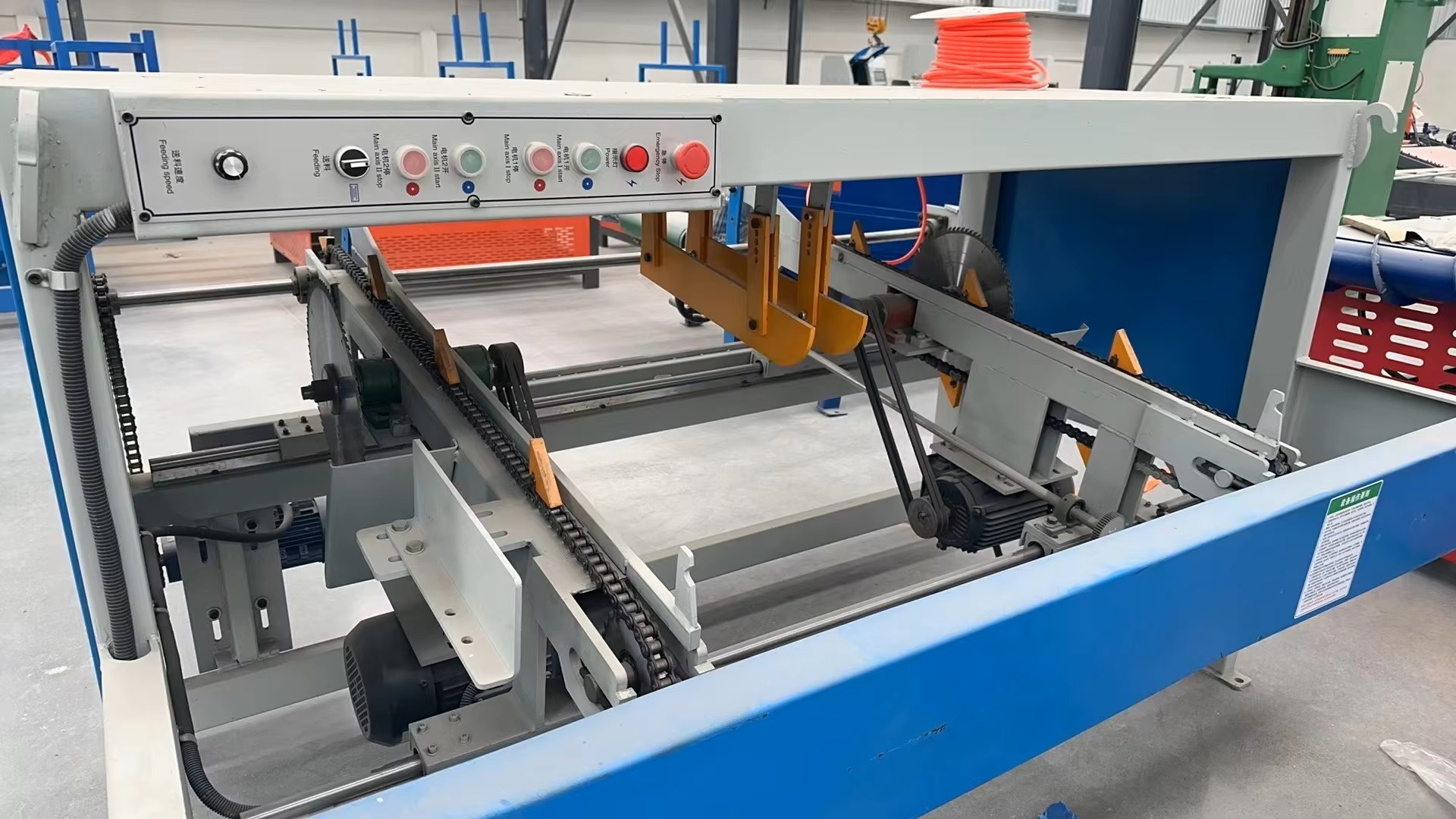

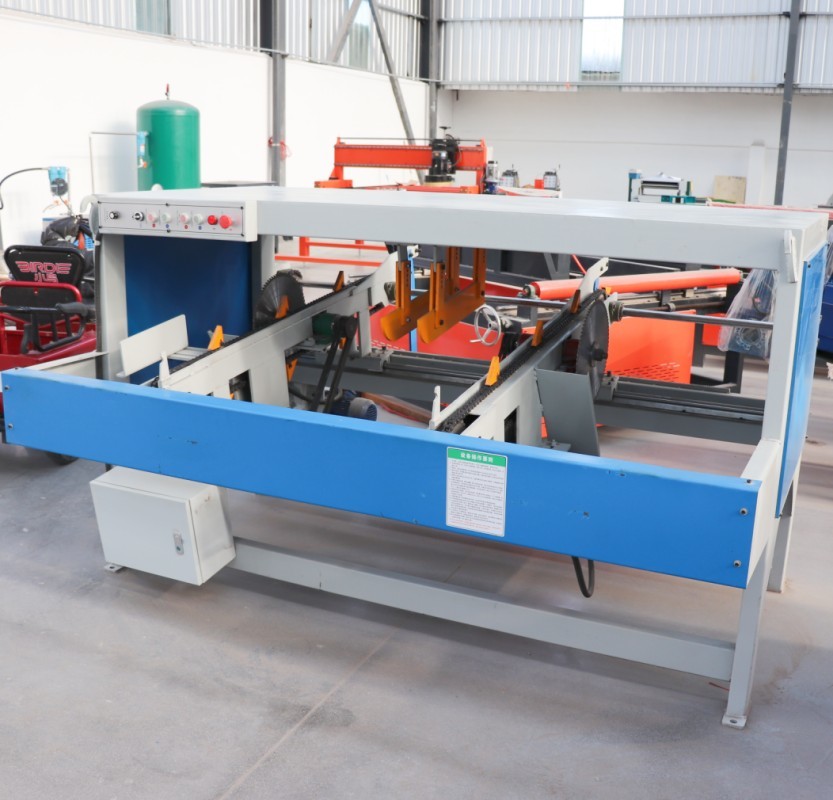

Photos:

Double End Trim Saw Machine for Woodworking With Motor and Blade Components Horizontal Cutting 0Double End Trim Saw Machine for Woodworking With Motor and Blade Components Horizontal Cutting 1

Heavy Duty multi-head cutting off saw

  • Technical data
Model PE-40003 PE-50004 PE-60005
Cutting Length 600-4000mm 600-5000mm 600-6000mm
Cutting Thickness 10-120mm 10-120mm 10-120mm
Cutting Width 10-400mm 10-400mm 10-400mm
Saw Diameter 450mm 450mm 450mm
Blade Pieces 3P 4P 5P
Motor

7.5kW*3, 0.75kW*2

7.5kW*4 , 0.75kW*2

7.5kW*5, 0.75kW*2

Efficiency 100m³/8h 150m³/8h 200m³/8h
Weight 2000kg 2500kg 3000kg

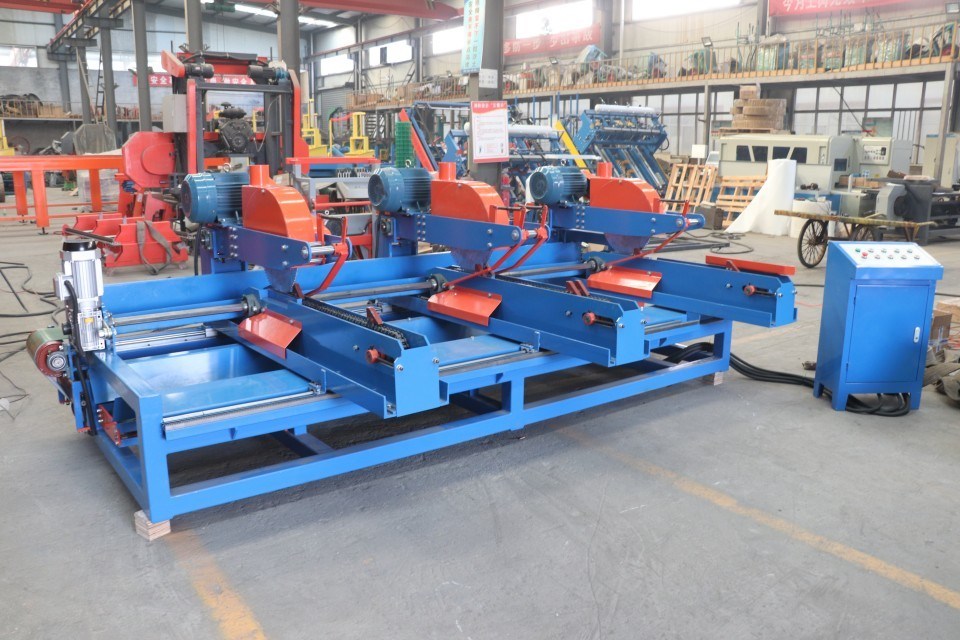

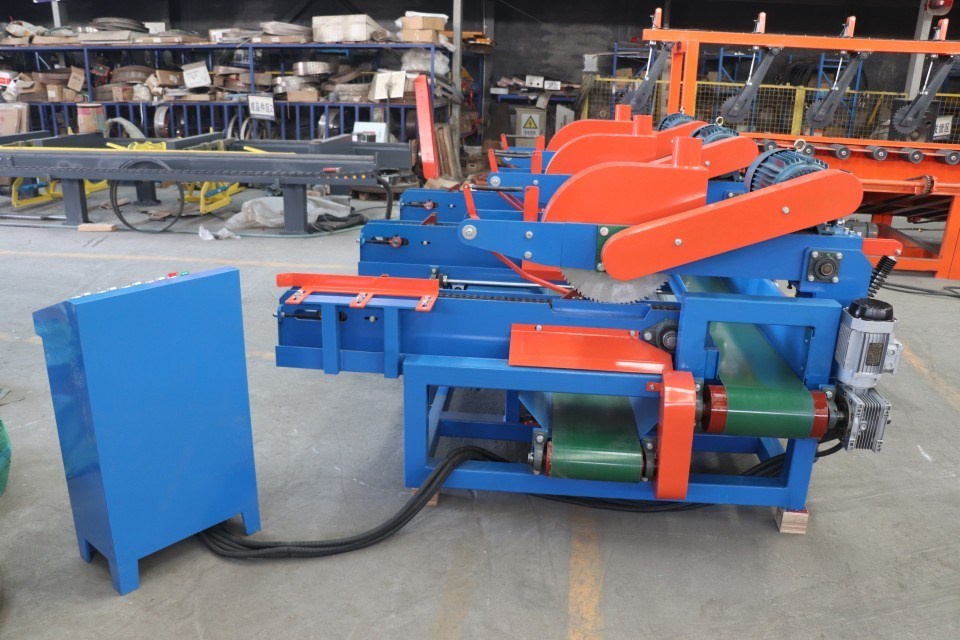

  • Photos

Double End Trim Saw Machine for Woodworking With Motor and Blade Components Horizontal Cutting 2

Double End Trim Saw Machine for Woodworking With Motor and Blade Components Horizontal Cutting 3

Key Features and Benefits at a Glance:

  • Powerful Cutting Performance
    Equipped with a high-torque motor and a robust circular blade, this saw effortlessly powers through dense hardwoods and thick lumber.

  • Precision and Accuracy for Flawless Results
    Designed for exactness, the saw features clear measurement scales and a secure locking mechanism.

  • Enhanced Efficiency and Durability
    Built with a sturdy base and a reliable fence system, the solid wood cut-off saw stabilizes large pieces of wood for safe, manageable operation.

Answers to Common Questions:

  • What materials can it cut?
    This saw is optimized specifically for solid wood materials, including lumber, boards, and timbers. It is not designed for cutting metal, masonry, or composite materials.

  • Is it suitable for a construction site?
    Absolutely. Its robust design stands up to the demands of a construction site, providing the portable power needed for framing, deck building, and general carpentry.

  • How does it help reduce waste?
    The combination of a sharp, clean-cutting blade and precise measurement systems ensures you get the exact length you need the first time, minimizing costly errors and maximizing the yield from each piece of wood.

Built to Last, Backed by Trusted Support

We stand behind the quality and durability of our solid wood cut-off saw. It is backed by a comprehensive warranty and supported by our dedicated customer service team, ready to assist you should any questions arise.

Ready to experience the difference a professional-grade cut-off saw can make?

Explore our models and find the perfect saw for your workshop today!
