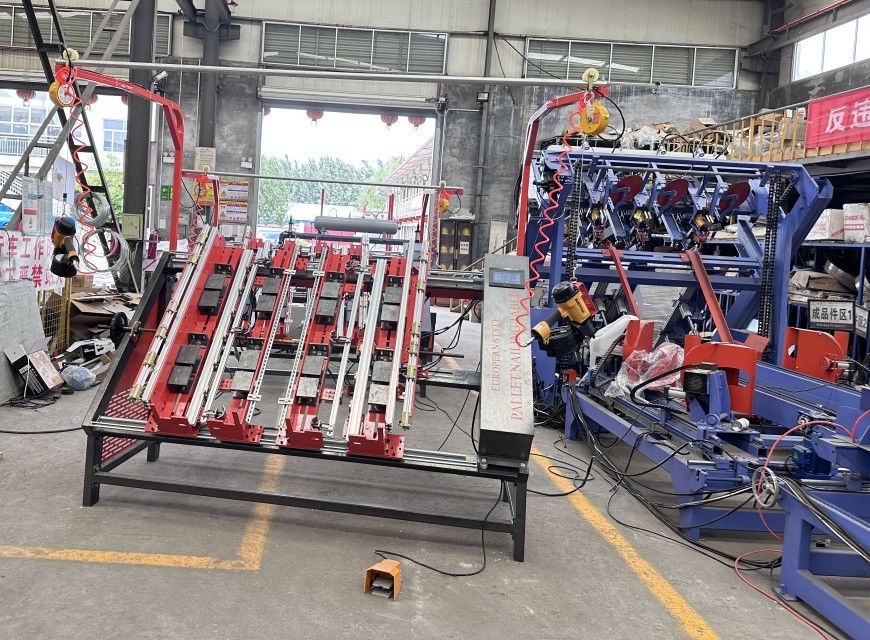

Wood Stringer Pallet Block Making Machine, Pallet Nailing Machine, Pneumatic Wood Pallet Nailing Table
Place of Origin | Shandong Province, China |
---|---|
Nazwa handlowa | SH |
Orzecznictwo | ISO9001 |
Model Number | PT-1600, PT-3300, AEPN-1300, etc |
Minimum Order Quantity | 1 SET Pallet nailing machine |
Cena | US $4,200 - 21,500 / Set |
Packaging Details | container loading of Pallet nailing machine |
Delivery Time | within 20 days |
Payment Terms | T/T, Western Union |
Supply Ability | 1000sets/year of Pallet nailing machine |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | pneumatic Pallet nailing table | pallet width | 800-1600 mm |
---|---|---|---|
pallet length | 600-1300mm | capacity | 240-320 pallets /8hours |
Operating pressure | 0.8MPA | Number of Coil Nail Guns | 2P (CN70、CN55) |
weight | 650kgs | Qty of stringers | 2, 3, 4, or 5 stringers |
Pneumatic clamp | Easily centers the blocks | Pneumatic lift | Raises pallet to minimize operator lifting |
After-sales service provided | Online support,Free spare parts,commissioning and training |

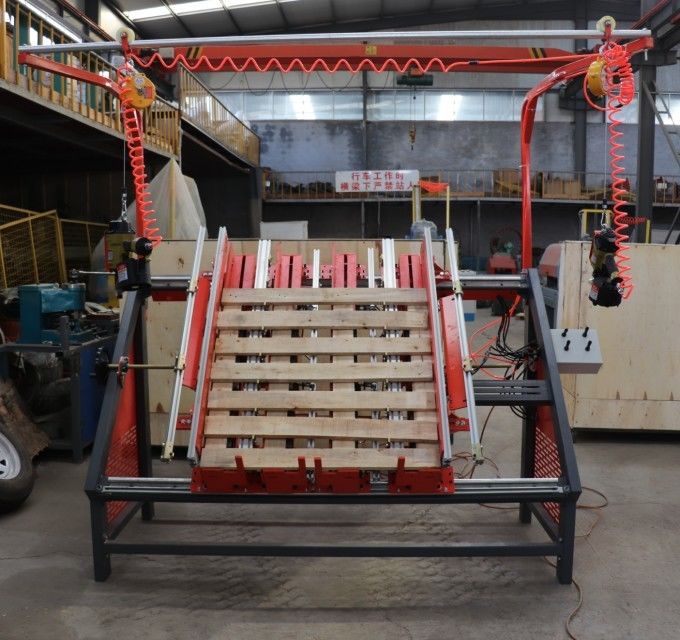

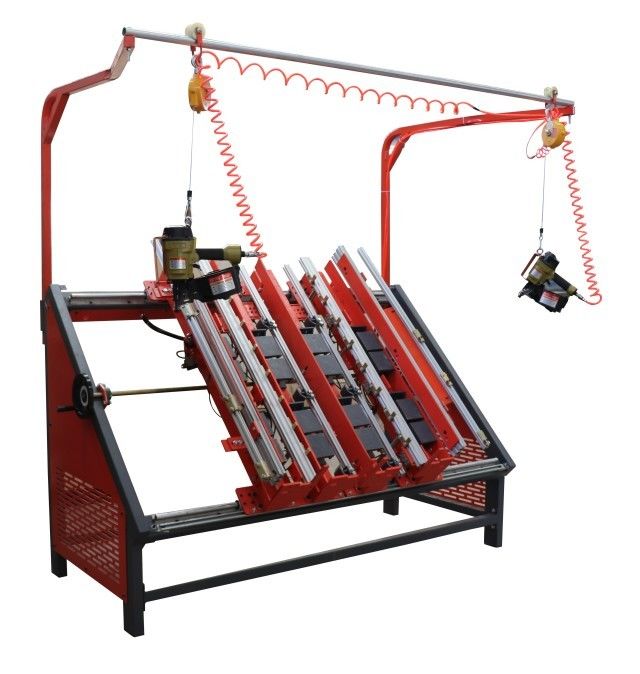

A universal pneumatic nailing table, Pneumatico PT-1600 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
- Easy to use One operator can build 210-230 pallets within 8 hours
- Compact design Total footprint 3.3 m² (35.5 ft²)
- Universal Adjustable worktop allows production of:
- Pallets on 2, 3, 4, or 5 stringers
- Efficient Quickly switch to any size pallet
- Pneumatic clamp Easily centers the blocks
- Pneumatic lift Raises pallet to minimize operator lifting
- Overhead roller track Nail guns can move freely during work
- Bottom template Template to build pallet legs
- Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
- Unique Diagonal table adjustment reduces work by 50%
- Only 2 Allen keys required to adjust the table
Technical specifications:
Model | PT-1600 | PT-3300 |
Wood pallet length | 600-1300mm | 700-1500mm |
Wood pallet width | 800-1600mm | 900-3300mm |
Operational mode | Pneumatic operation | Pneumatic operation |
Air pressure | 0.8MPA | 0.8MPA |
Production efficiency | 30-40pcs /h | 30-40pcs /h |
Number of beams | 3p (customized) | 5p (customized) |
Number of nail guns |
2P (CN70,CN55) American Stanley staple gun |
2P (CN70,CN55) American Stanley staple gun |
Weight | 650kg | 950kg |
Size | 2400*980*1900mm | 4000*980*1900mm |
Automatic Wood Pallet Nailing Machine with Automatic palletizer
-- Euro and National Style Wooden Pallets
Model | AEPN-1300 |
Wood pallet length | 700-1300mm |
Wood pallet width | 800-1300mm |
Working mode | Automatic feeding and stacking |

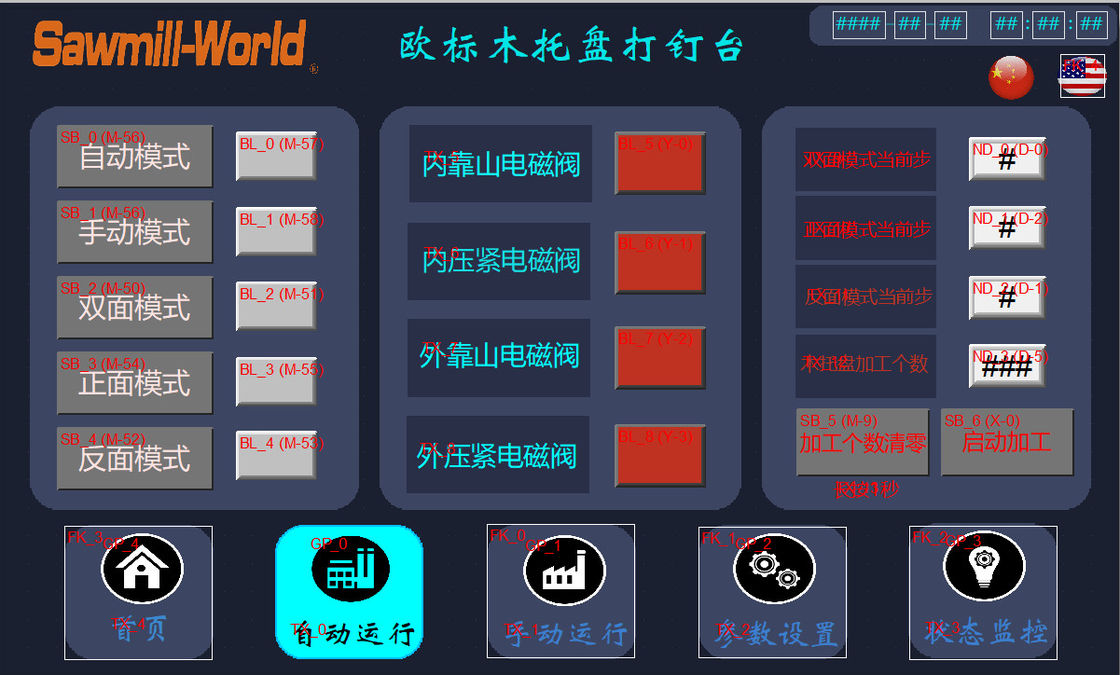

Operation mode | Touch screen |
Operational mode | Pneumatic operation |
Voltage and power | 2kw Servo motor |
Air pressure | 0.8MPA |
Nail gun speed | 7 times /second. |
Production efficiency | 1-2pcs /min |
Number of nail guns | 6P CN70,CN58 |
Weight | 2000kg |
Euro Wood Pallet Automatic Production Line
Related Products
Wood Pallet Feet Nailing Machine for Euro Pallets
Model | SLDJ-1300-3 |
Block width | 60-150mm |
Board Length | 600-1300mm |
Nail gun | Stanley BOSTITCH Stitch CN70*3 |
Nailing method | 1 nail, 2 nails, 3 nails, 4 nails, 5 nails |
Air pressure | 0.8MPA |
Nail gun speed | 4-8 s/time |
Motor power | 1.5KW Servomotor |
Voltage | 220V(Customized) |
Operating mode | Touch screen |
Production mode | Manual discharge/automatic pin pier |
Weight | 1240kg |
